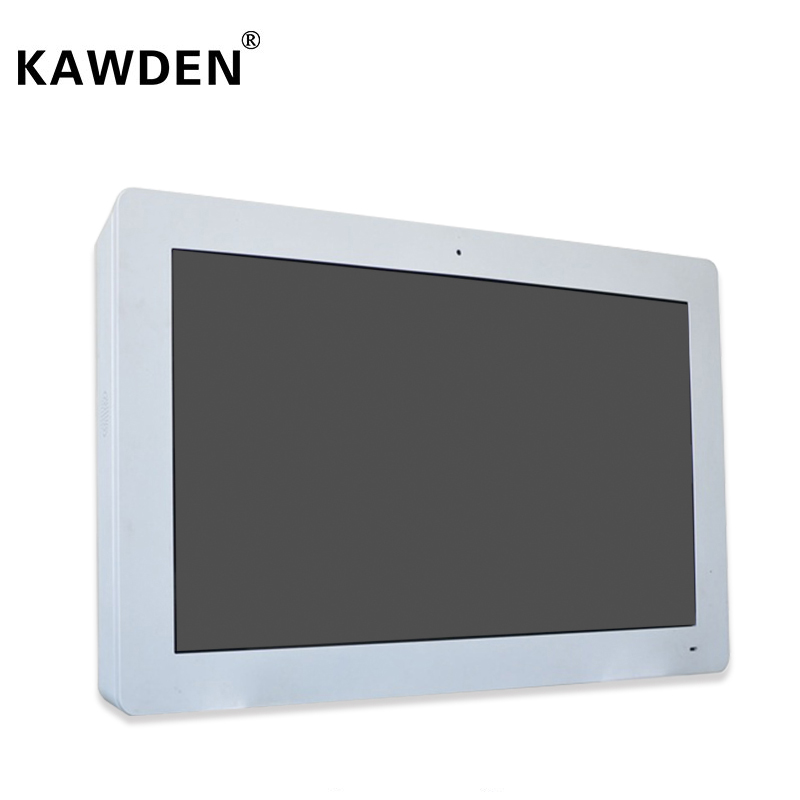

47inch KAWDEN wall-mounted air cooled type horizontal screen kiosk
Product details
Technology information
1．ourdoor water-proof dust-proof
ØThe level of protection reach IP65(air condition type), water-proof, dust-proof design, stand-floor, pre-embeded or customized installation mode( air-cooled type IP55)
ØAdopt high transmition anti-glare AR laminated glasses, improve the visuality, AR anti-galre technology can get more vivid images under sunshine.
ØGalvanized steel plain sheet metal shell plus the rust-proof power, rust proof age is beyond 7 years
2.High brightness, vivid display under sunshine
ØHigh brightness LCD screen, brightness up to1500-3000cd/m2
ØLED backlight, lamp life up to 100000 hours
Ø High dynamic contrast ratio, get more clear images
ØIntelligent temperature cotrol air-cooled design, 7*24 hours work time without any brightness decay.
3．Features
Ø Stand-floor installation, unique double door desigan, easy maintenance
Ø Outdoor water-proof , dust-proof design
Ø High brightness LCD screen, anti-glare design, display the vivid image even if under sunshine.
Ø Professional temperature control tech, noScreen melanismunder sunshine.
Ø Adopt international famous fan, more stability and green silence
Technical parameter
| wall-mounted air cooled type | model | TY-FC47H/VW |
| High brightness screen | screen demension | 47寸 |
| resolution ratio | 1920*1080 | |
| brightness | 2000cd/㎡ | |
| display area | 1018*572mm | |
| vision angle | 178°/178° | |
| brightness control | automatic sensilization | |
| Machine parameter | horizontal screen size | 800*1150*196mm |
| vertical screen size | 1200*700*196mm | |
| power voltage | AC 208-240V/50Hz | |
| cooling system | intelligent air cooled | |
| power consumption | ≤285W | |
| work temperature | -30℃-45℃ | |
| work humidity | 5%-90%RH | |
| water-proof lever | IP55 | |
| weight | 46Kg | |
| shell anti-corrosion tech | Galvanized steel plain sheet metal shell plus the rust-proof power, rust proof age is beyond 7 years。 | |
| Optional configuration | play system | PC board android system long distance info release system |
| network transmission | standalone WIFI 3G 4G | |
| touch screen | capacitance touch infrared touch | |
