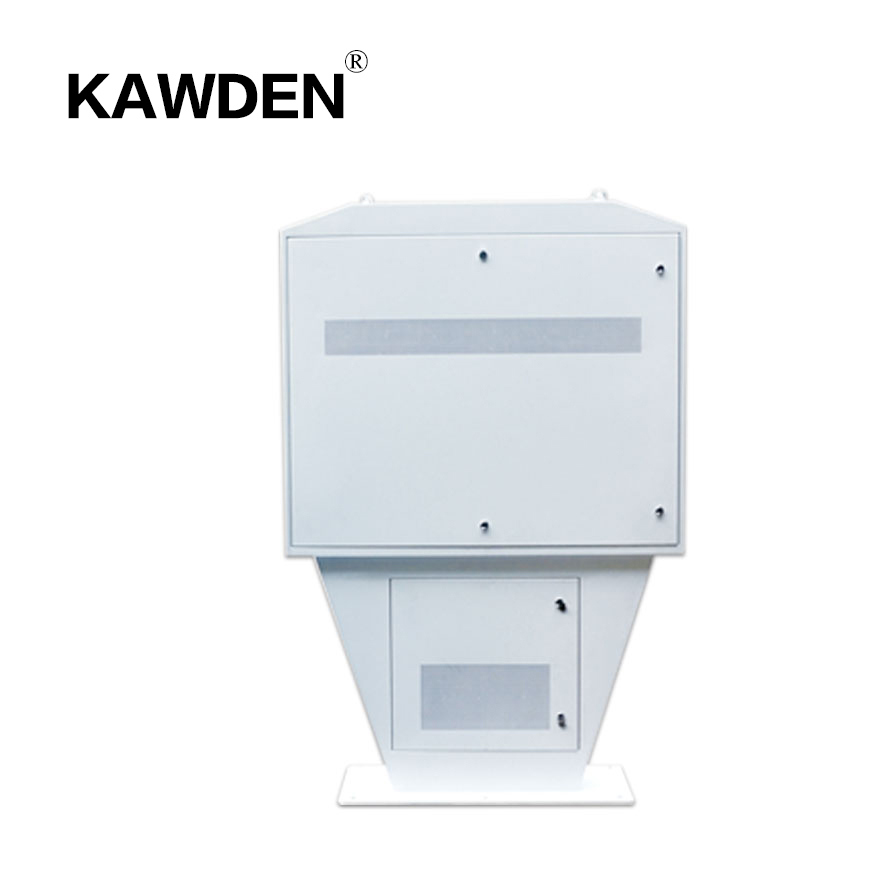

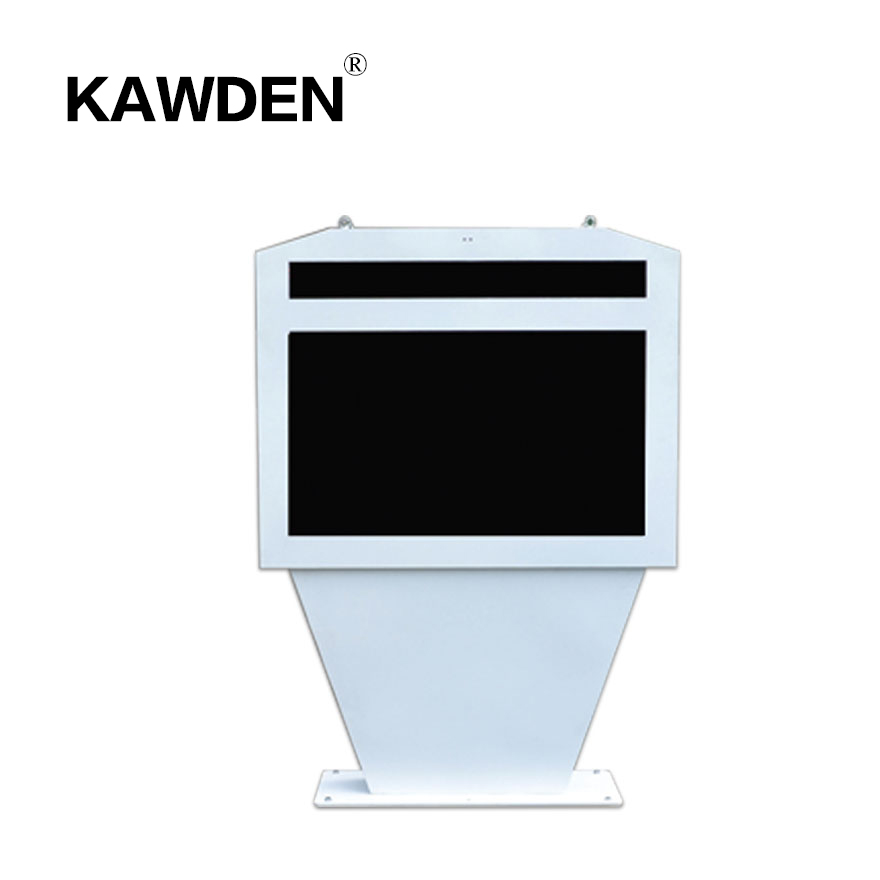

65inch KAWDEN stand-floor air-cooled kiosk

Technology introduction

1．OUTDOOR WATER-PROOF DUST-PROOF

ØThe level of protection reach IP65(air condition type), water-proof, dust-proof design, stand-floor, pre-embeded or customized installation mode( air-cooled type IP55)

ØAdopt high transmition anti-glare AR laminated glasses, improve the visuality, AR anti-galre technology can get more vivid images under sunshine.

ØGalvanized steel plain sheet metal shell plus the rust-proof power, rust proof age is beyond 7 years

2．High brightness, vivid display under sunshine

ØHigh brightness LCD screen, brightness up to1500-3000cd/m2

ØLED backlight, lamp life up to 100000 hours

Ø High dynamic contrast ratio, get more clear images

ØIntelligent temperature cotrol air-cooled design, 7*24 hours work time without any brightness decay.

3．Features

Ø Stand-floor installation, unique double door desigan, easy maintenance

Ø Outdoor water-proof , dust-proof design

Ø High brightness LCD screen, anti-glare design, display the vivid image even if under sunshine.

Ø Professional temperature control tech, noScreen melanismunder sunshine.

Ø Adopt international famous fan, more stability and green silence

stand-floor horizontal screen	Model	TY-FC65WL
high brightness screen	screen demension	65寸
	resolution ratio	1920*1080
	brightness	2500cd/㎡
	display area	1428*803mm
	vision angle	178°/178°
	brightness control	automatic sensitization
machine parameter	outer demension	2000*1460*255mm
	power voltage	AC 208-240V/50Hz
	Cooling system	intelligent air-cooled system
	power consumption	≤500W
	Work temperature	-30℃-45℃
	work humidity	5%-90%RH
	water-proof level	IP55
	weight	150Kg
	Shell anti-corrosion tech	Galvanized steel plain sheet metal shell plus the rust-proof power, rust proof age is beyond 7 years
optional configuration	play system	PC board android board long distance release system
	network transmission	standalone WIFI 3G 4G
	touch screen	capacitance touch infrared touch
