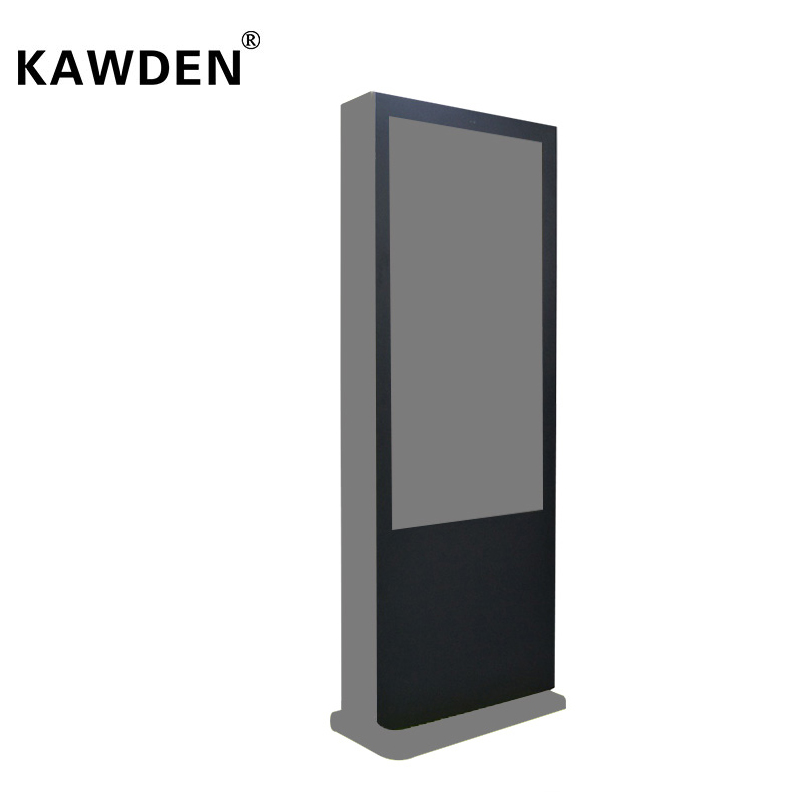

42inch KAWDEN stand-floor air-conditioner system vertical screen kiosk
Product details
Techonology introduction
1．outdoor water-proof dust-proof
ØThe level of protection reach IP65(air condition type), water-proof, dust-proof design, stand-floor, pre-embeded or customized installation mode( air-cooled type IP55)
ØAdopt high transmition anti-glare AR laminated glasses, improve the visuality, AR anti-galre technology can get more vivid images under sunshine.
ØGalvanized steel plain sheet metal shell plus the rust-proof power, rust proof age is beyond 7 years
2.High brightness, vivid display under sunshine
ØHigh brightness LCD screen, brightness up to1500-3000cd/m2
ØLED backlight, lamp life up to 100000 hours
Ø High dynamic contrast ratio, get more clear images
ØIntelligent temperature cotrol air-cooled design, 7*24 hours work time without any brightness decay.
3．Features
Ø Stand-floor installation, unique double door desigan, easy maintenance
Ø Outdoor water-proof , dust-proof design
Ø High brightness LCD screen, anti-glare design, display the vivid image even if under sunshine.
Ø Professional temperature control tech, noScreen melanismunder sunshine.
Ø Adopt international famous fan, more stability and green silence
Air conditioner type：
Ø Intelligent cooling & heating integrated air conditioner, keep constant temperature interal machine, LCD brightness will not decay for long time working
Ø high-performance integrated air conditioner with green cooling medium, more energy conservation and envinomental protection
Ø Intelligent monitor system, control machine's internal running situation(temperature, humidity, vibration)
Ø Provide customized multi info release system for the clients' industry application
Technical parameter
| stand-floor vertical screen | model | TY-AC42WL |
| High brightness screen | screen demension | 42inch |
| resolution ratio | 1920*1080 | |
| brightness | 2000cd/㎡ | |
| display area | 928*522mm | |
| vision angle | 178°/178° | |
| brightness control | automatic sensilization | |
| machine parameter | outer demension | 1950*700*220mm |
| temperature-controlling system | intelligent industry air conditioner system | |
| power voltage | AC 208-240V/50Hz | |
| power consumption | ≤330W | |
| work temperature | -30℃-50℃ | |
| work humidity | 5%-100%RH | |
| water-proof level | IP65 | |
| weight | 105Kg | |
| shell anti-corrosion tech | Galvanized steel plain sheet metal shell plus the rust-proof power, rust proof age is beyond 7 years |
|
| Optional configuration | play system | PC board android board long distance info release system |
| network transmission | standalone WIFI 3G 4G | |
| touch screen | capacitance touch infrared touch | |
