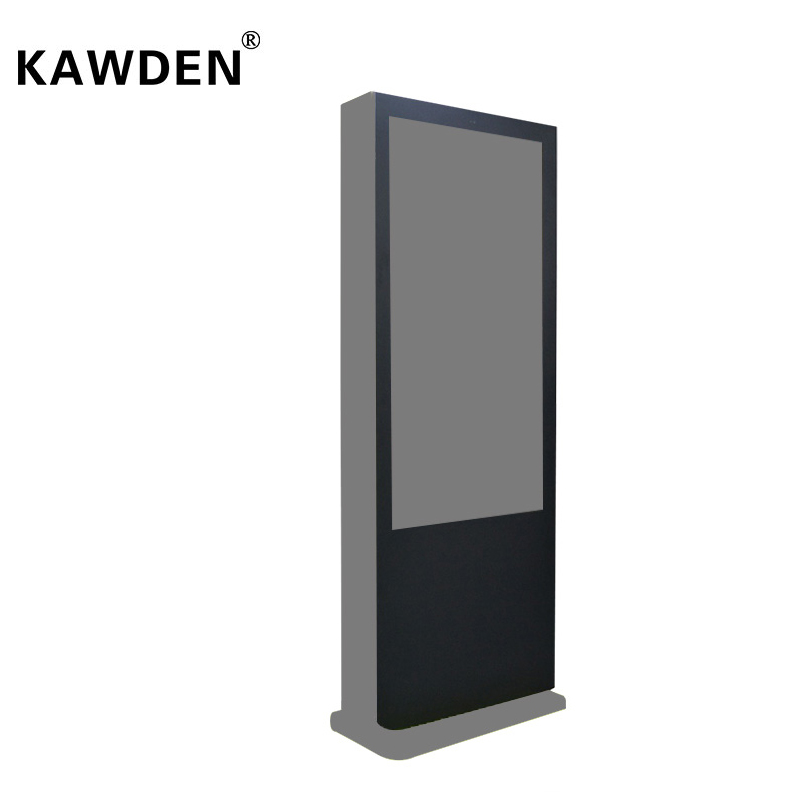

65inch KAWEN stand-floor air-cooled system kiosk
Product details
Technology introduction
1．Outdoor water-proof dust-proof
ØThe level of protection reach IP65(air condition type), water-proof, dust-proof design, stand-floor, pre-embeded or customized installation mode( air-cooled type IP55)
ØAdopt high transmition anti-glare AR laminated glasses, improve the visuality, AR anti-galre technology can get more vivid images under sunshine.
Øc
2.High brightness, vivid display under sunshine
ØHigh brightness LCD screen, brightness up to1500-3000cd/m2
ØLED backlight, lamp life up to 100000 hours
Ø High dynamic contrast ratio, get more clear images
ØIntelligent temperature cotrol air-cooled design, 7*24 hours work time without any brightness decay.
3．Features
Ø Stand-floor installation, unique double door desigan, easy maintenance
Ø Outdoor water-proof , dust-proof design
Ø High brightness LCD screen, anti-glare design, display the vivid image even if under sunshine.
Ø Professional temperature control tech, noScreen melanismunder sunshine.
Ø Adopt international famous fan, more stability and green silence
Technical parameter
| stand-floor vertical screen | model | TY-FC65VL |
| High brightness screen | screen demension | 65 inch |
| resolution ratio | 1920*1080 | |
| brightness | 2500cd/㎡ | |
| display area | 1428*803mm | |
| vision angle | 178°/178° | |
| brightness control | automatic sensilization | |
| Machine parameter | outer demension | 2300*1000*230mm |
| temperature-cotrolling system | intelligent air-cooled system | |
| power voltage | AC 208-240V/50Hz | |
| power consumption | ≤500W | |
| work temperature | -30℃-45℃ | |
| work humidity | 5%-90%RH | |
| water-proof level | IP55 | |
| weight | 150Kg | |
| shell anti-corrosion tech | ØGalvanized steel plain sheet metal shell plus the rust-proof power, rust proof age is beyond 7 years 。 |
|
| optional configuration | play system | 电脑主板 安卓主板 远程信息发布系统PC board android board long distance info release system |
| network transmission | standalone WIFI 3G 4G | |
| touch screen | capacitance touch infrared touch | |
